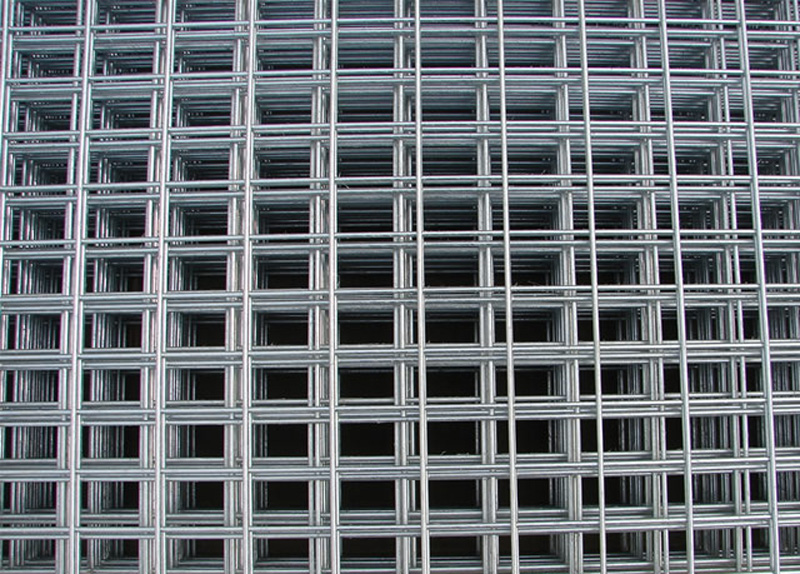

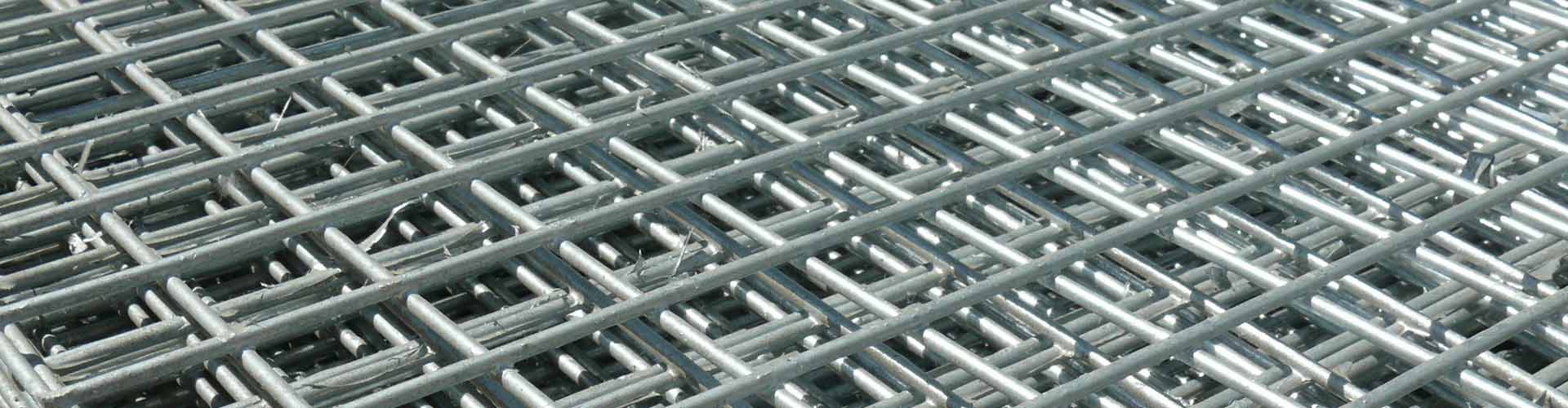

As the name suggests, Welded wire mesh panel is a mesh made of high-quality low-carbon steel wire that has been straightened and cut and then welded by electric welding equipment. Welded wire mesh panel is widely used because of its simple structure, fast production, beautiful and practical, and easy to transport.
Welded wire mesh panel is mainly used in construction projects. It has strong corrosion resistance, uniform mesh and strong overall performance. The Welded wire mesh panel is easy to construct and guarantees quality.
The brick wall for construction is also a kind of Welded wire mesh panel, which has the characteristics of convenient construction and quickness, and is mainly used in the construction of new countryside. To enhance the wall's tensile strength and prevent earthquake use.

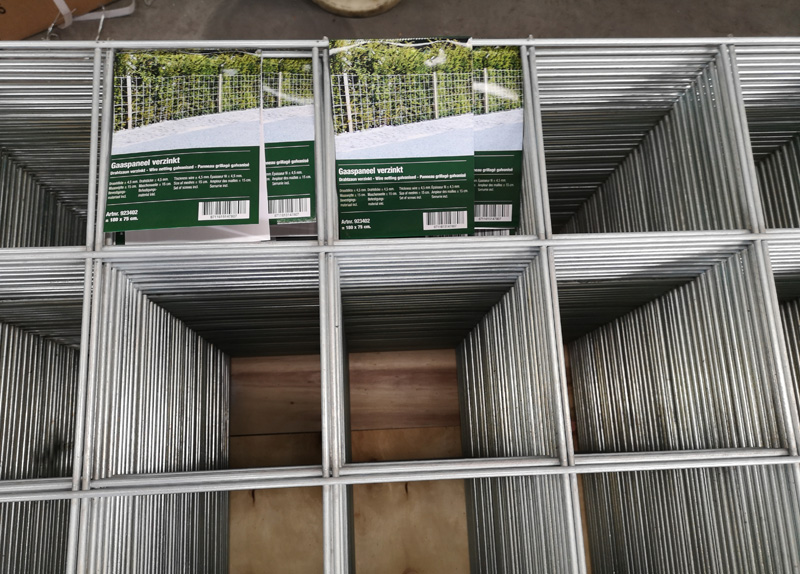

Our welded wire mesh panels are galvanized to give them a protective coating, shielding them from corrosion and rust. These panels can be used for a wide range of applications, including:
8.Pond covers or protection
|Welded Wire Mesh Panel|
|1" × 1"||25mmx25mm||14# - 11#||2.0mm - 3mm|
|2" × 1"||50mmx25mm||14# - 8#||2.0mm - 4mm|
|2" × 2"||50mmx50mm||14# - 8#||2.0mm - 4mm|
|3" × 2"||75mmx50mm||14# - 6#||2.0mm - 5mm|
|3" × 3"||75mmx75mm||14# - 6#||2.0mm - 5mm|
|4" × 2"||100mmx50mm||14# - 4#||2.0mm - 6mm|
|4" × 4"||100mmx100mm||14# - 4#||2.0mm - 6mm|
|5" × 5"||125mmx125mm||14# - 4#||2.0mm - 6mm|
|6" × 6"||150mmx150mm||14# - 4#||2.0mm - 6mm|
|Note: Special size and specifications can be made according to customers requires.|
Material: Low carbon steel wire, galvanized wire, Stainless steel wire
Surface treatment: Electro galvanized, hot dipped galvanized, PVC coated
Hole sizes explained
25.4mm is 1” holes are perfect for small animal’s enclosures, hutches, cages, chicken coops and rabbit runs
50.8mm is 2” holes are perfect for creating fencing for larger animals such as dogs.
Or Call Us at +86 311 8883 3097
Custom wire mesh and additional specifications available.
