Welded Wire Mesh Fence (3D)

Welded Wire Mesh Fence (3D)

Welded Wire Mesh Fence(3D)

Material: Low carbon steel wire

Wire: 3.0mm-6.0mm

Mesh: 50*200mm,50*100mm, etc.

Height: 1.2m-3m

Width: 2-3m

Post: 60*60mm,80*80mm,100*100mm, etc.

Accessories: post caps, clips, nuts and bolts.

Surface treatment: Hot dipped galvanized, PVC coated, Powder coated

Packaging: Pallets

Certificates: ISO9001, BV,SGS


TECHNICAL INFORMATION

  • Product description
  • Specifications
  • Technology
  • Picture
  • Download

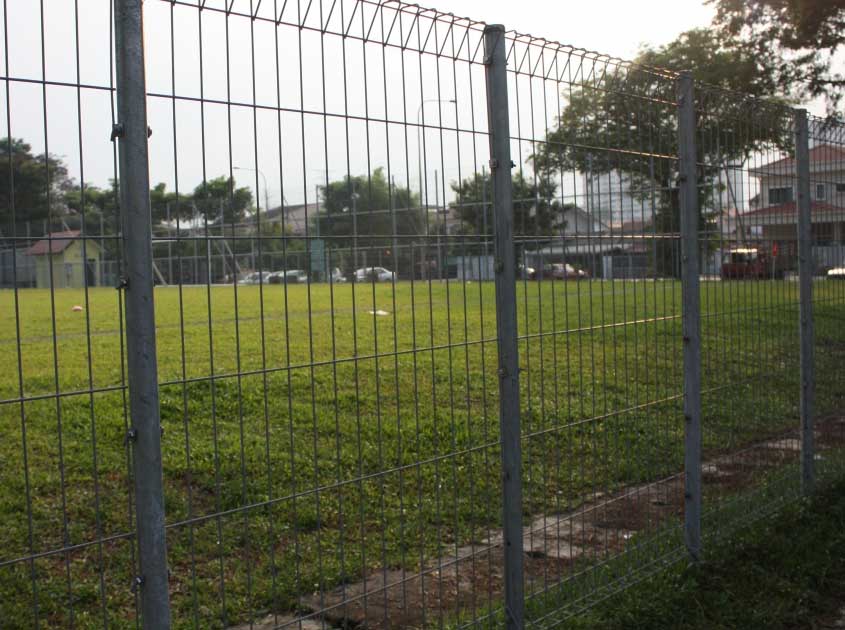

Welded wire mesh fence  is also known as curvy welded fencing, triangle mesh fence,3D fence, etc. Welded wire mesh fence  is pretty light yet durable, its composition is simply wire welded together to make a fence. The surface treatment of  Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated.

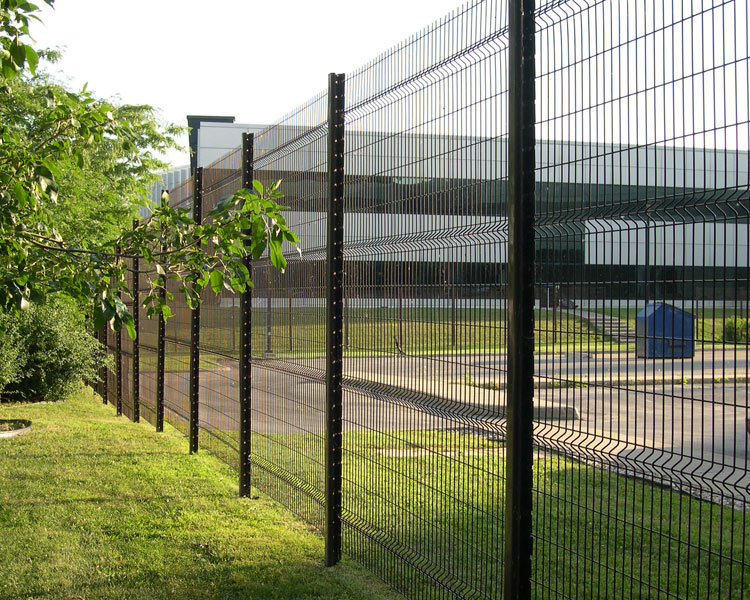

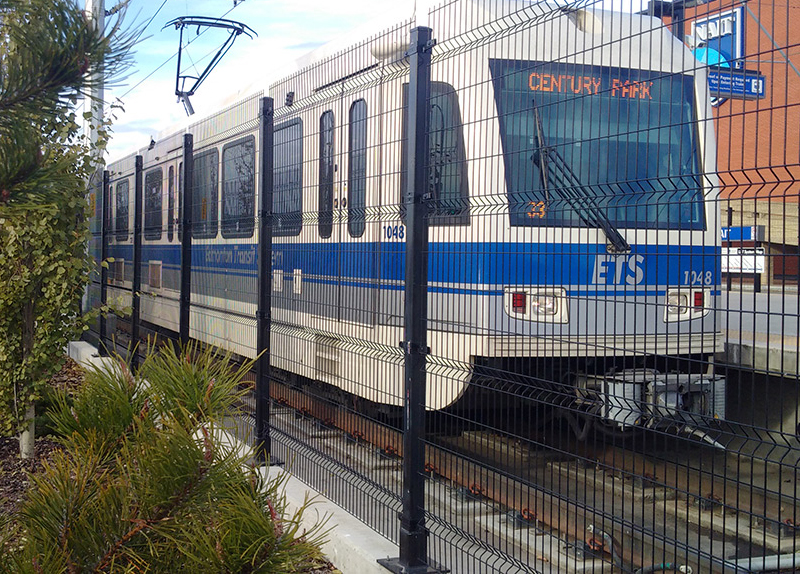

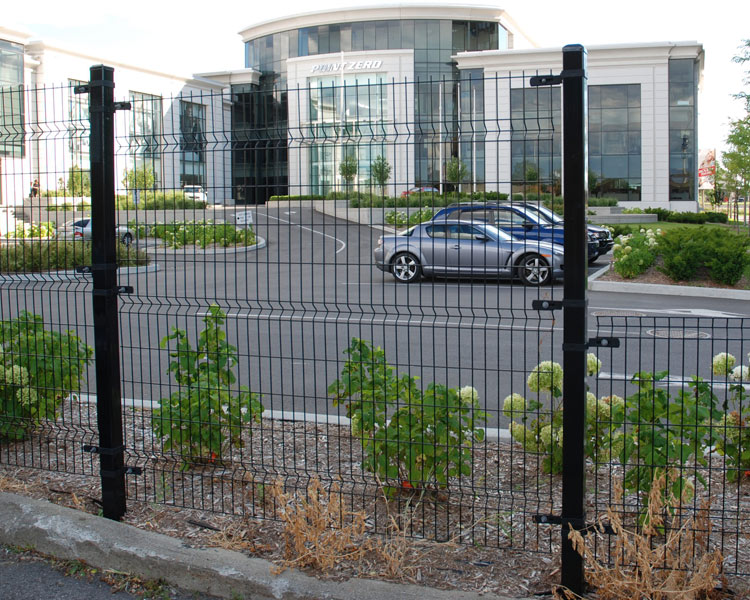

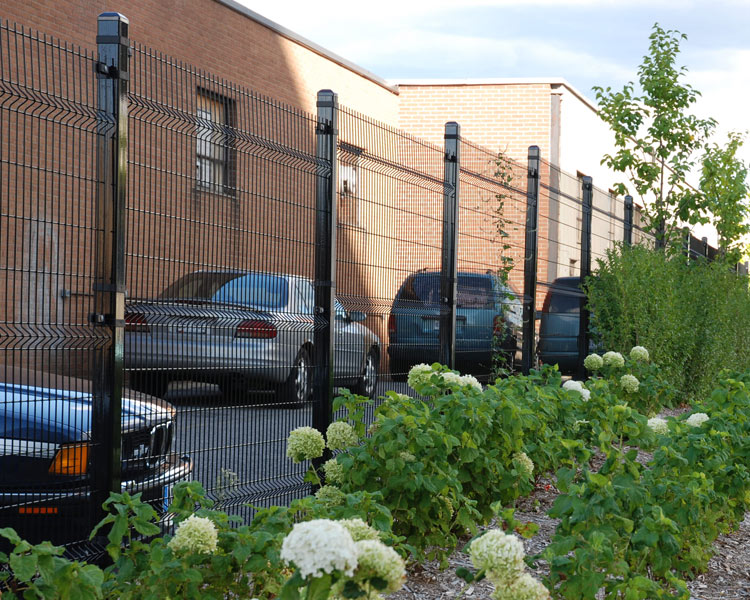

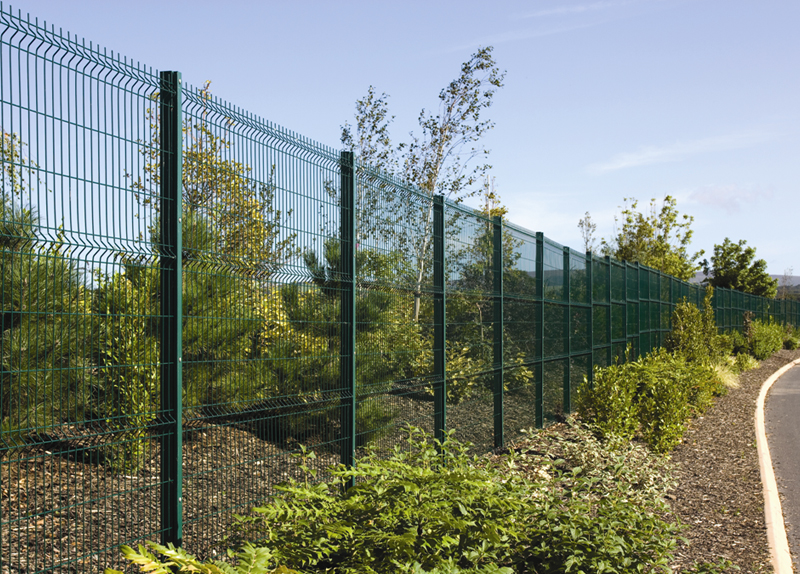

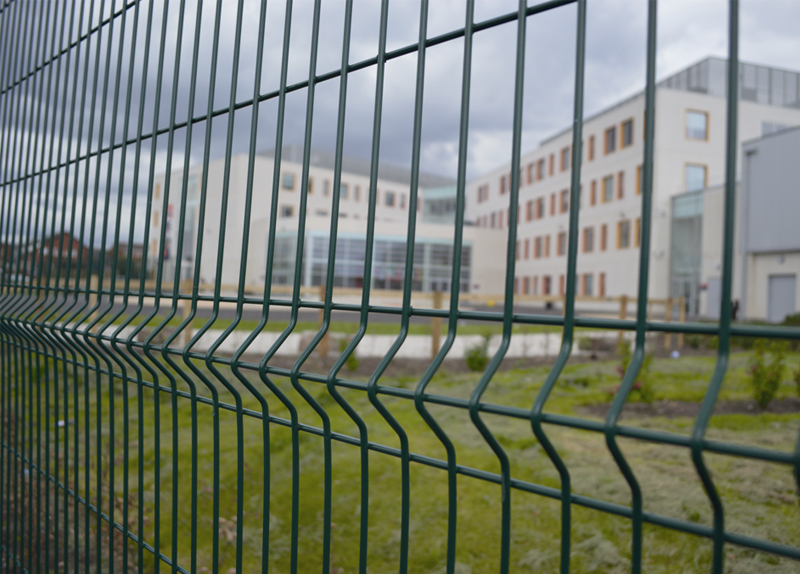

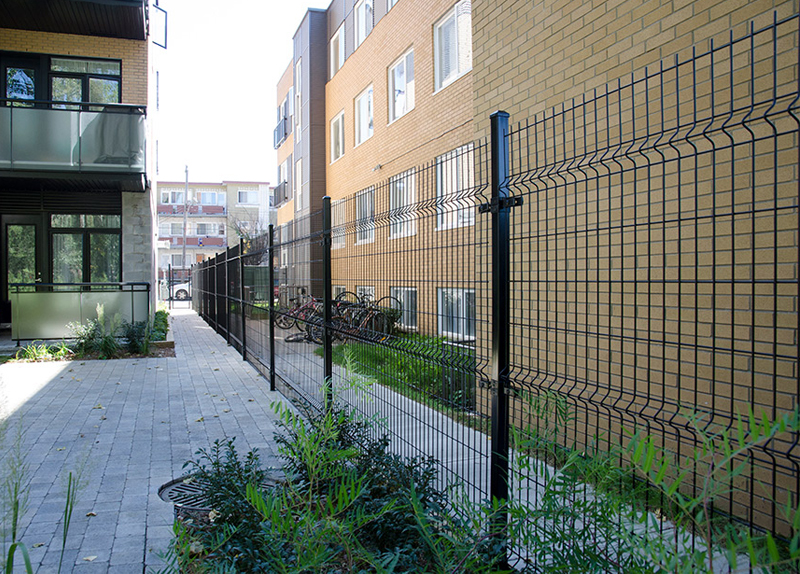

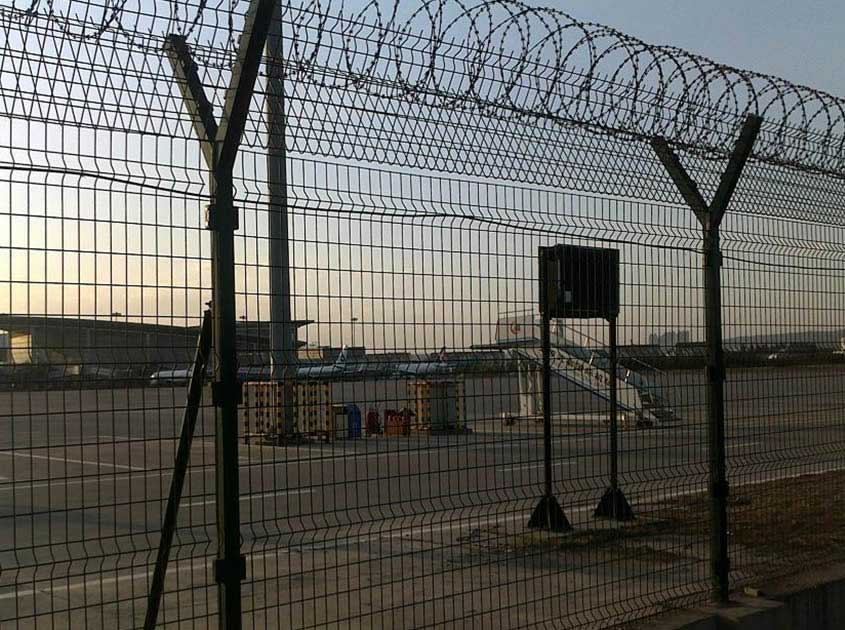

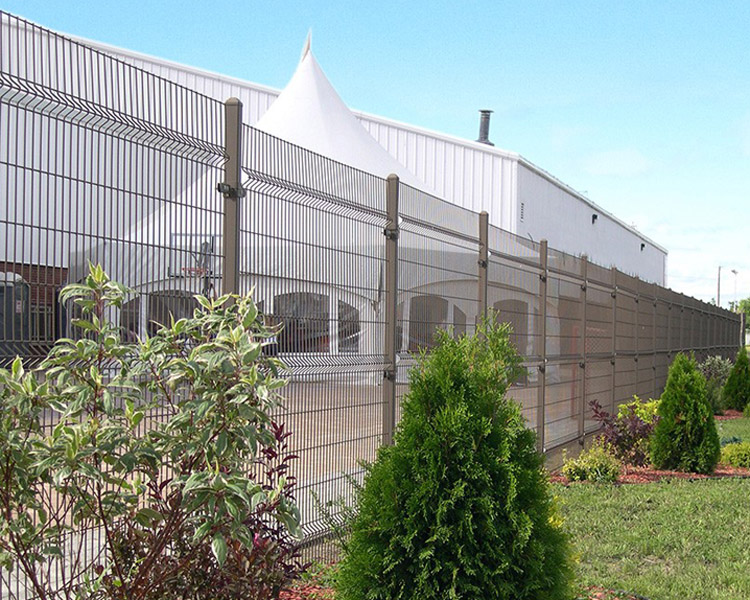

Welded Wire Panel Fence is a type of welded wire mesh which has V-shaped strengthen bending curves. Welded Wire Panel Fence is made of high quality low carbon steel wire, galvanized wire. Then will be hot dipped galvanized,powder coated or pvc coated. Welded Wire Panel Fence looks modern and attractive. Mainly used for security protection in construction site, residential building, sports field, warehouse, highway or airport service area, railway station, etc.

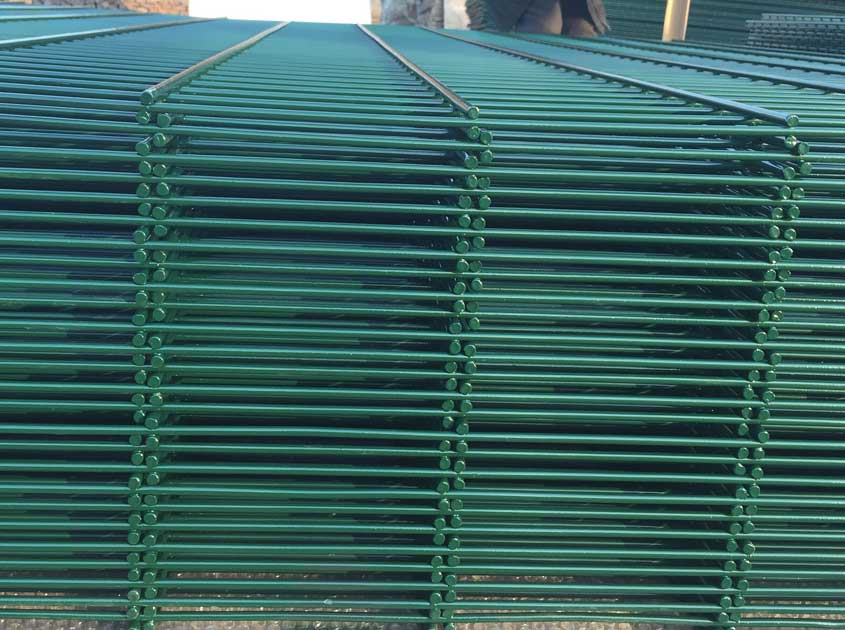

Welded Wire Mesh Fence Panels

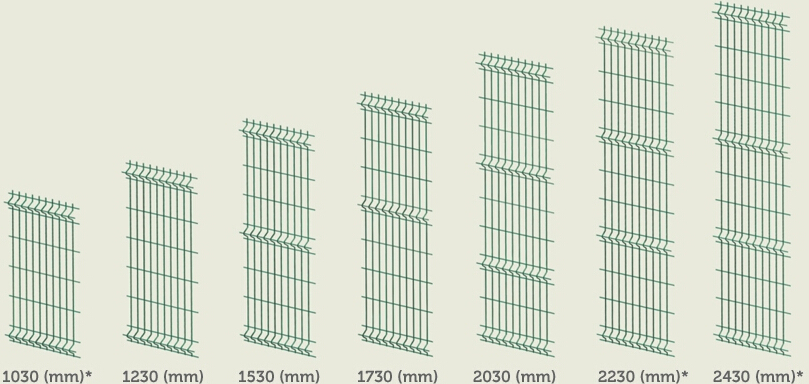

The welded wire mesh fence panels have a width of 2500mm and heights ranging from 600mm to 2440mm. There have vertical barbs of 30mm on one side and are reversible (barbs at top or at bottom). Mesh sizes are 200 x 50mm , and 100mm x 50mm for the beam sections. The heavy wires guarantee strength and rigidity.Different sizes can be made according to customer detailed requirements.

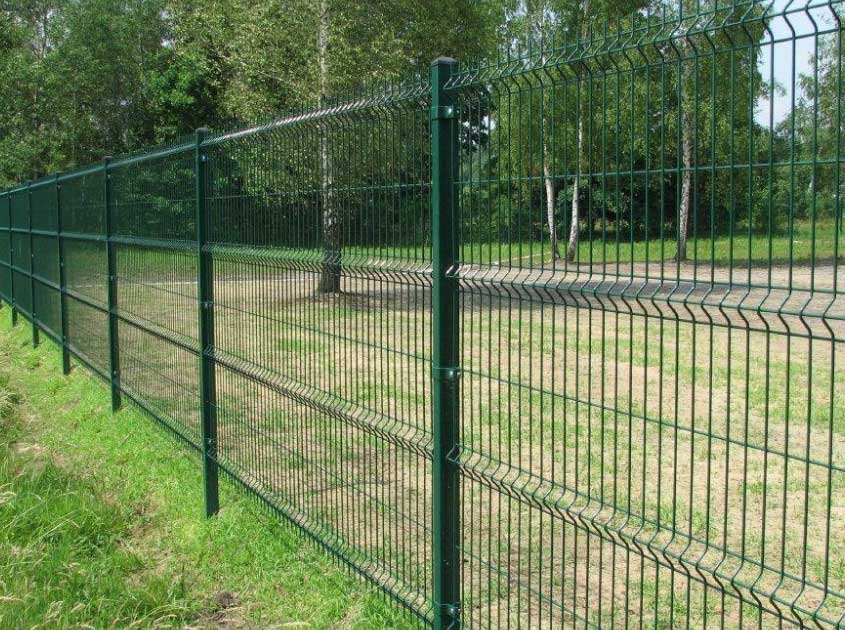

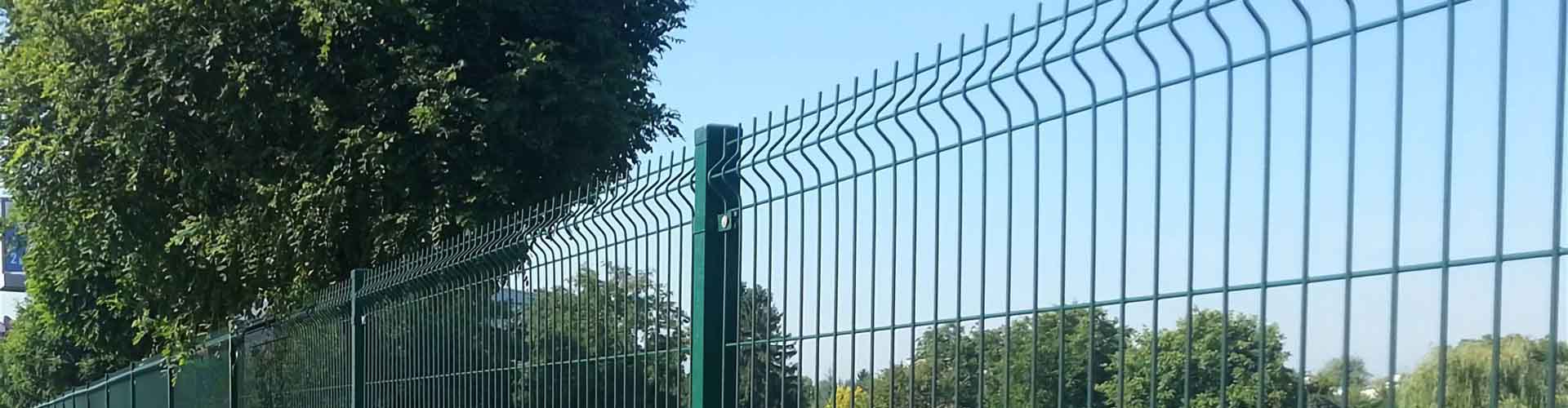

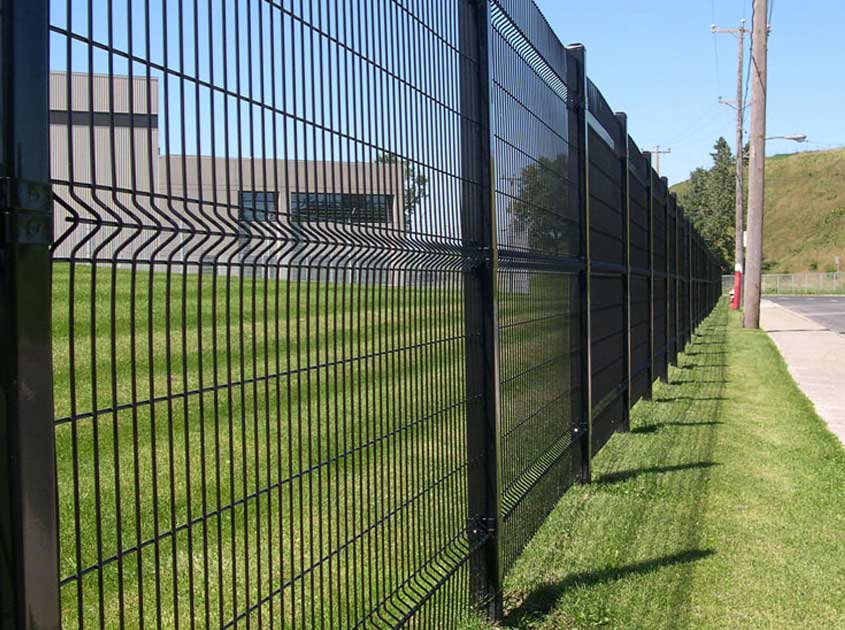

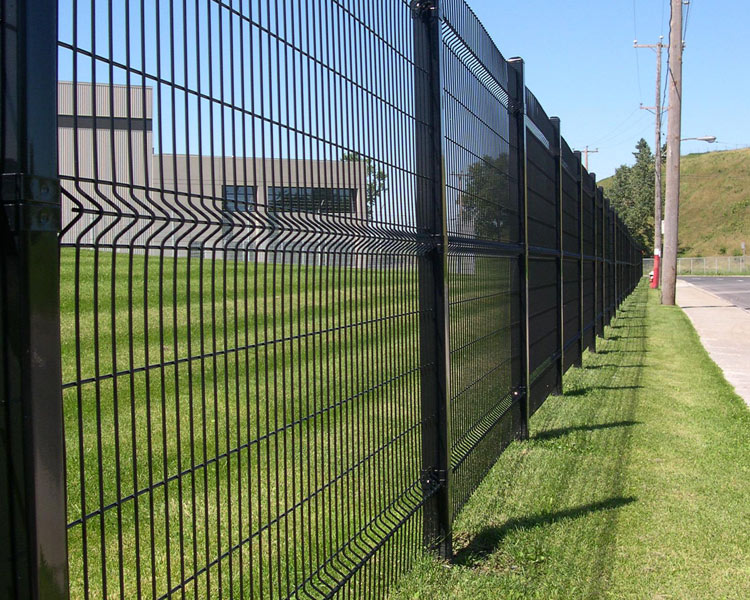

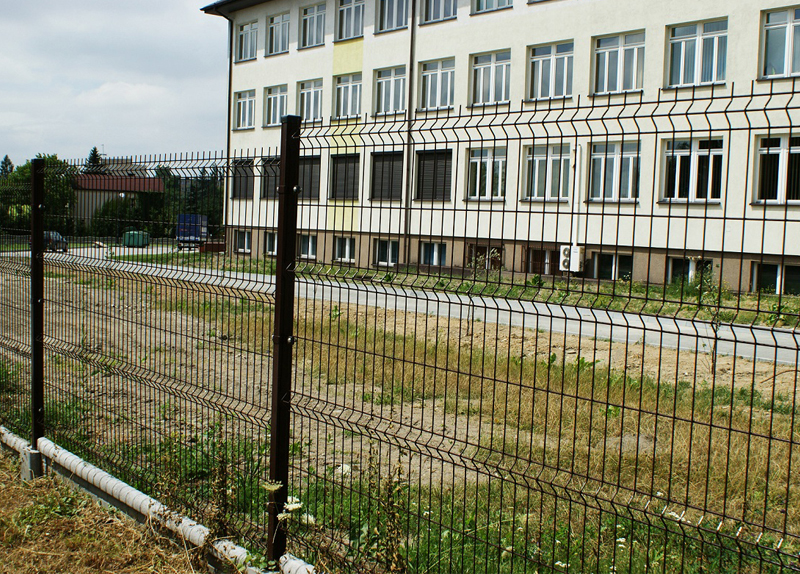

Welded Wire Panel Fence (3D)

Posts

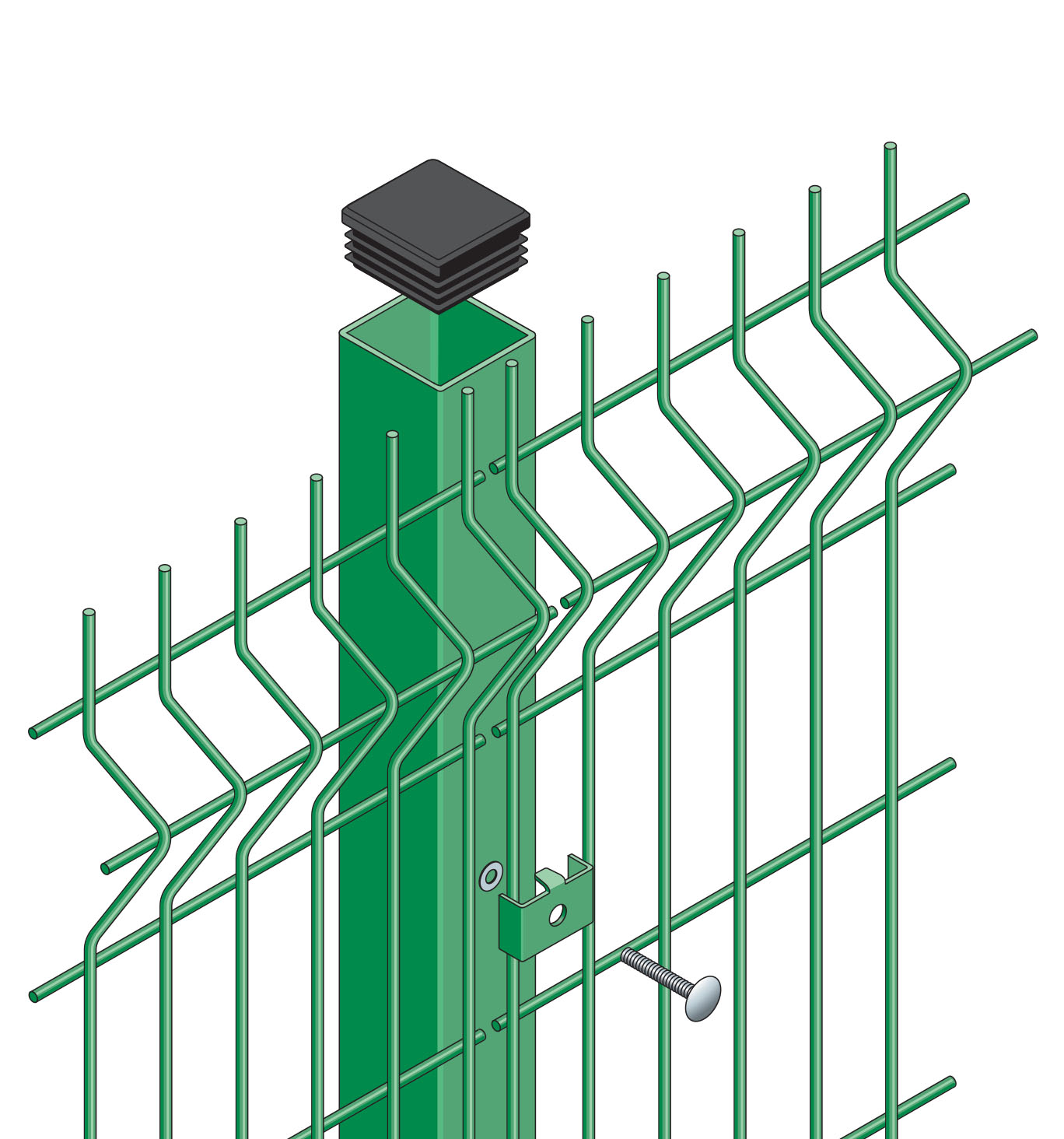

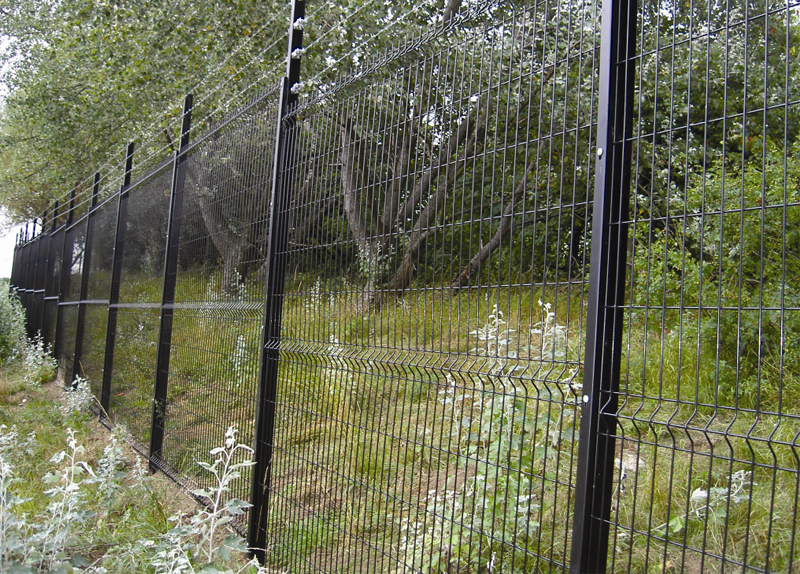

The welded mesh fence panels are attached with high strength steel posts. The common posts of the welded fence are SHS tube, RHS tube, Peach post, Round pipe or Special-shaped post. Welded mesh fence panels will be fixed to the post by suitable clips according to different post type.


Installation manner

1.The post popular buried under the ground 600mm-800mm and pouring concrete when installation them.

2.Welded flange base under the post ,and use setscrews to install on the hard ground.
