Stainless Steel Rope Mesh

Wire Rope Mesh also called stainless steel cable mesh， zoo mesh，Flexible Stainless Steel Rope Mesh,  High-Altitude Anti-Fall net. It can be divided into ferrule type and inter-woven type by production crafts. Due to the different styles of these two rope mesh products, we also refer to the ferrule type rope mesh as stainless steel ferrule mesh, X-TEND Mesh. The inter-woven type wire rope mesh is a pure hand-woven net, which is also called as interwoven stainless steel cable mesh, hand-woven wire rope mesh, or knotted stainless steel cable mesh.

Stainless Steel Wire Rope Fence Mesh material is produced by high quality stainless steel wire cable, the stainless steel grade includes type 304, 304 L, 316, and 316L. The structures of the Stainless Steel Wire Rope Fence Mesh are 7 x 7 and 7 x 19. The standard Stainless Steel Wire Rope Fence Mesh diameter includes 1/8", 3/32", 1/16", and 3/64", and the standard mesh opening size includes 2" x 2", 3" x 3", and 4" x 4".

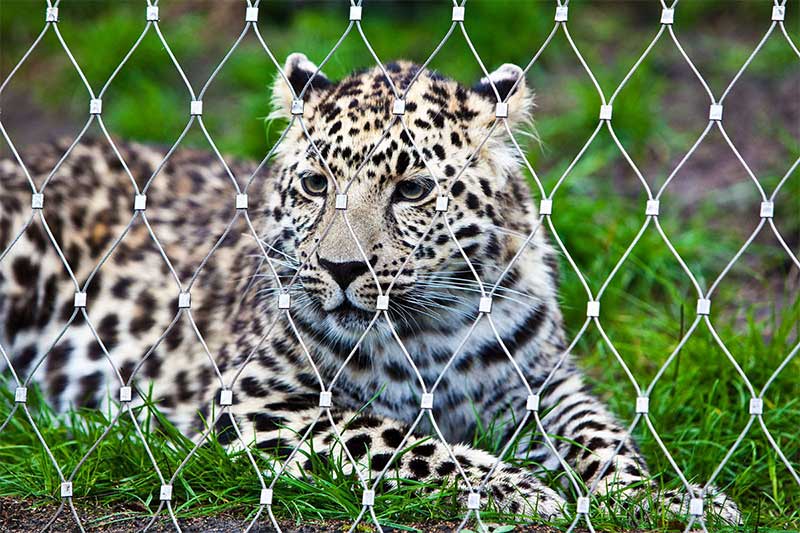

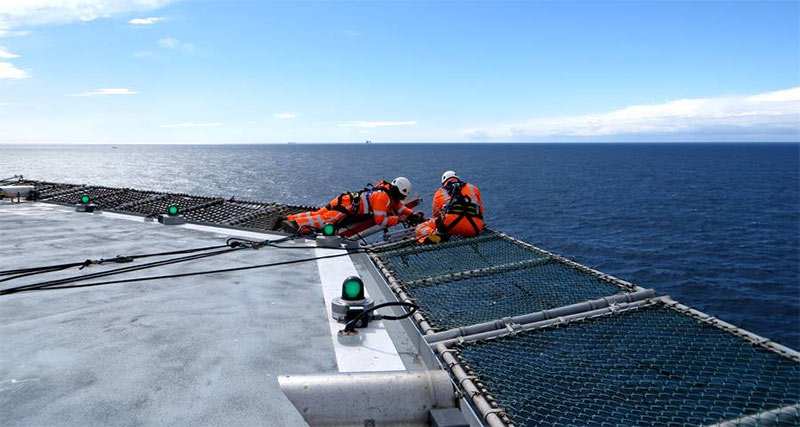

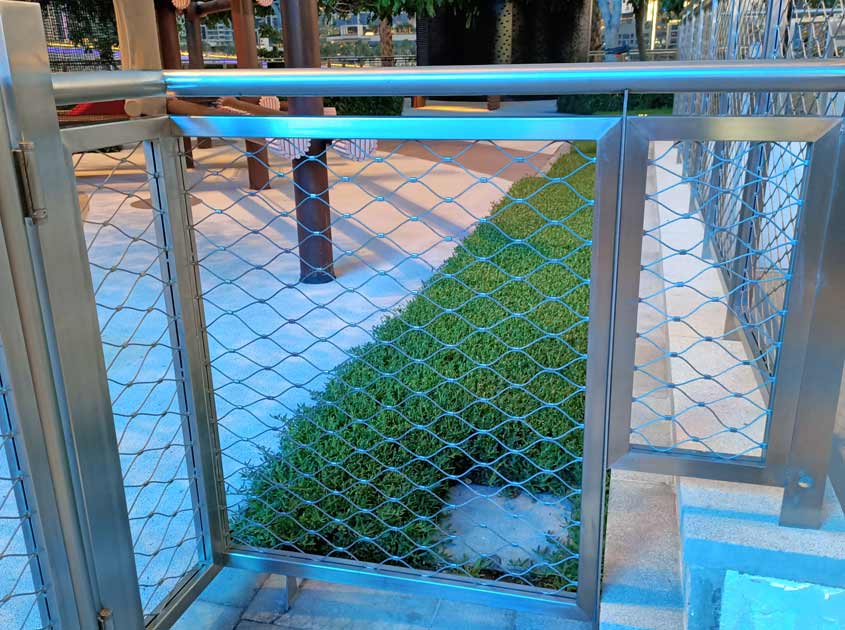

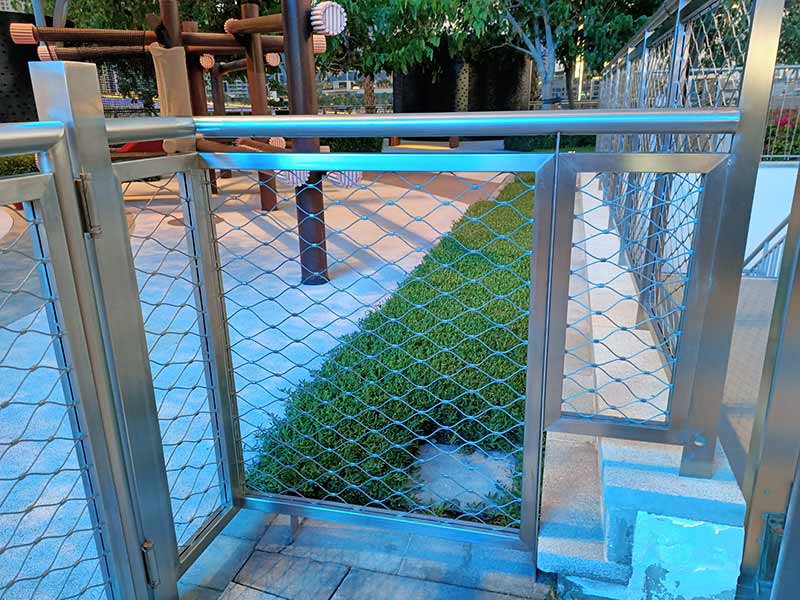

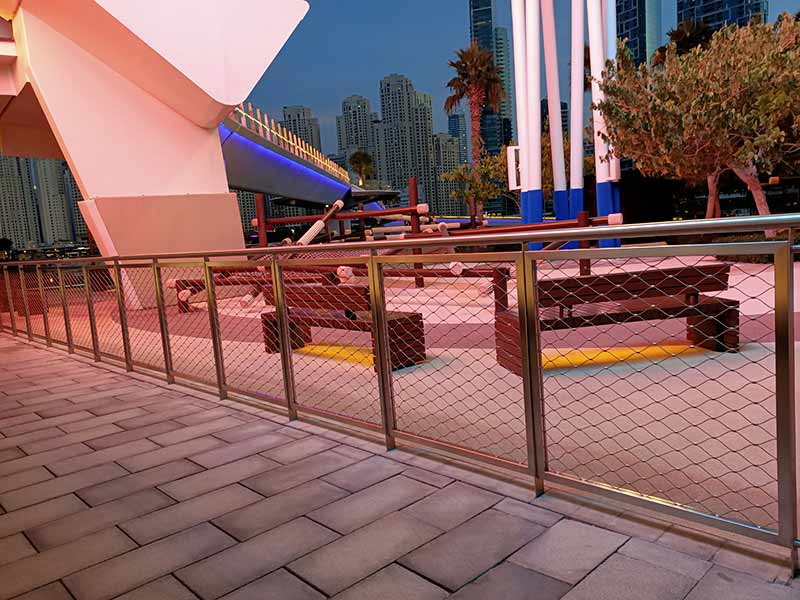

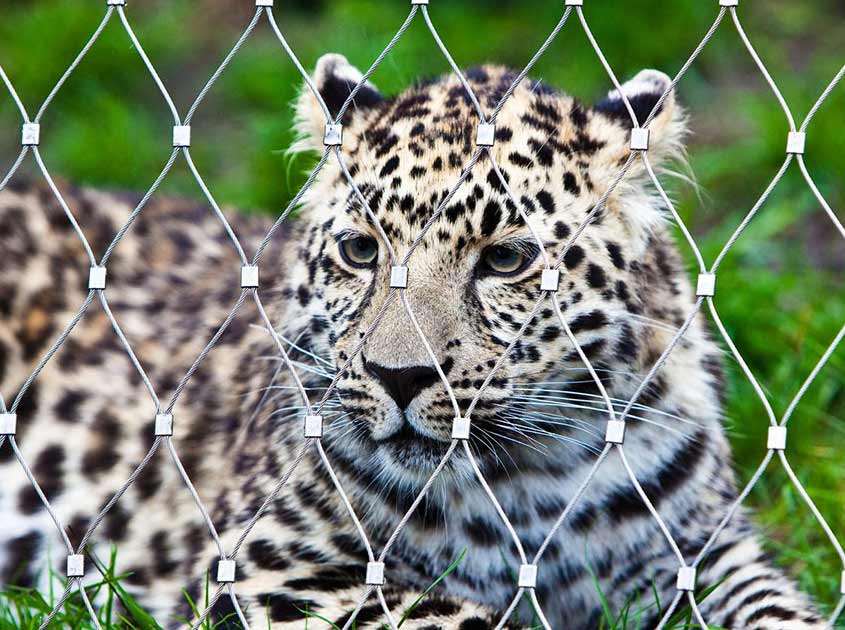

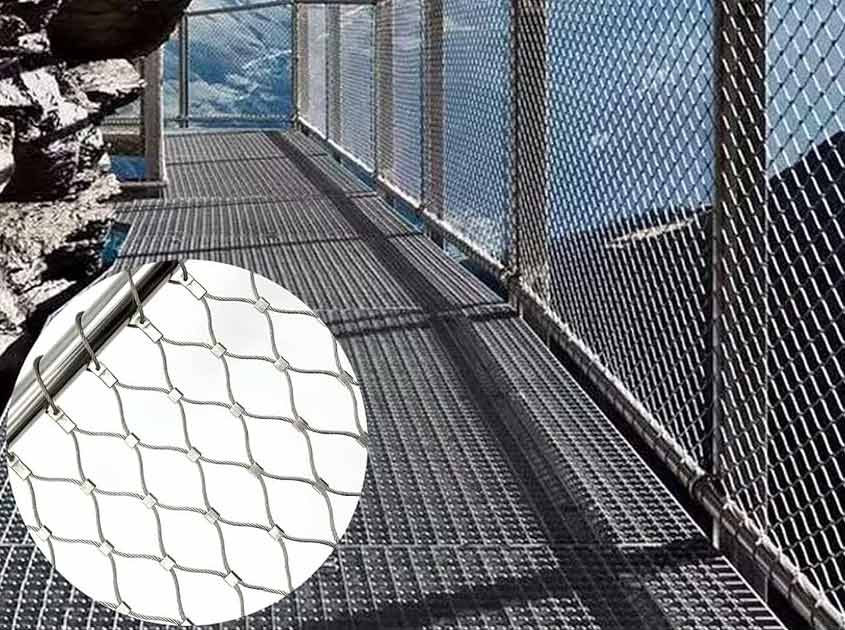

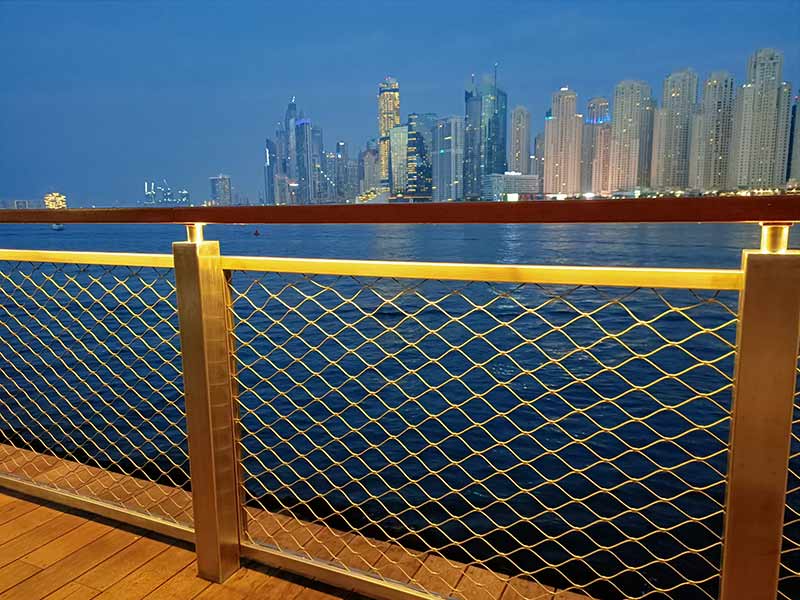

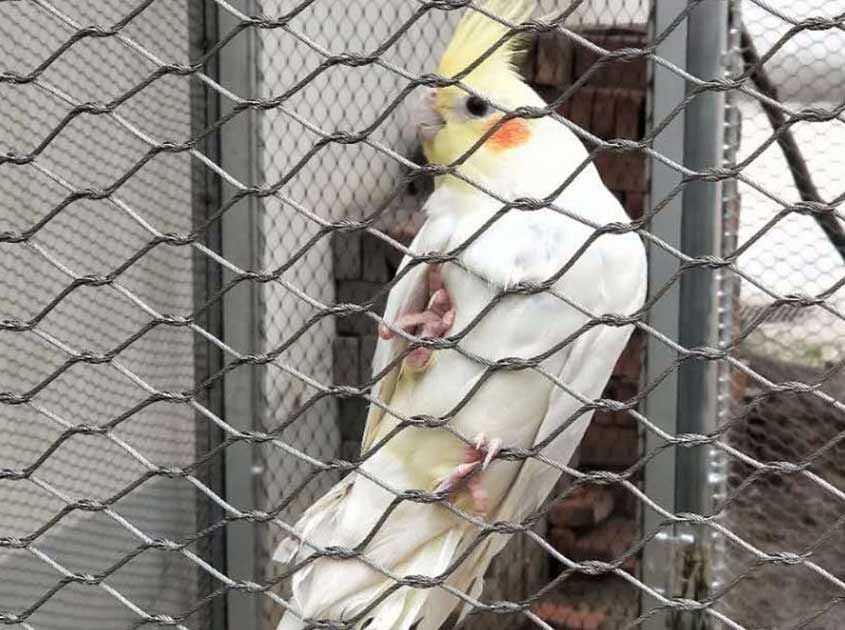

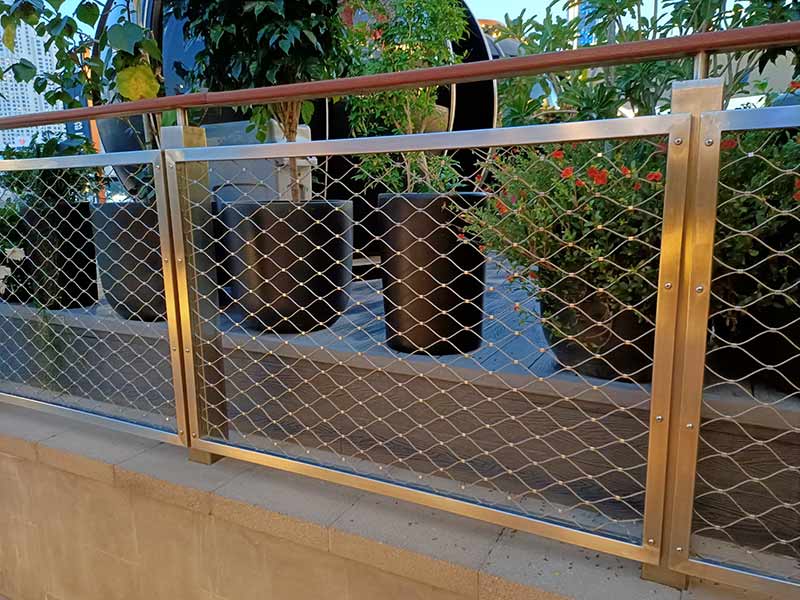

The stainless steel rope mesh has a unique decorative style and is more secure. The diamond hole pattern makes the grid strong and flexible. Different opening sizes can be customized to meet the different needs of customers. Widely used in interior staircase decoration, building exterior wall decoration, horizontal or vertical fall protection, dividers, exterior wall cladding, zoos, safety nets, stair railings, suspension bridges, railing fillers, etc. It is safe, light weight, long service life, high-strength, etc.

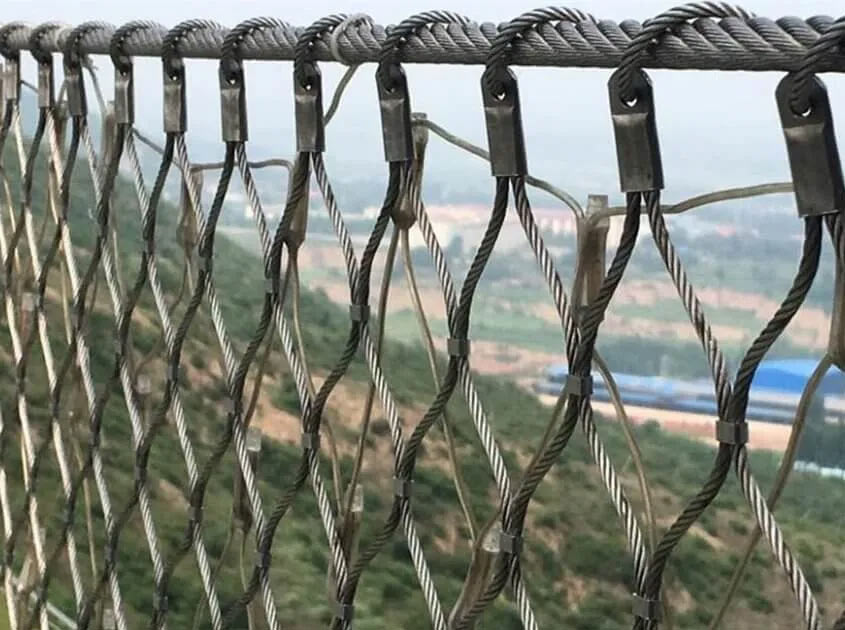

1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

2. Ferruled mesh has the same physical properties as the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Flexible Stainless Steel Cable Mesh
Type	Knotted cable mesh	Ferrule cable mesh
Combination	Inter-woven	Seamless ferrule
Hole   pattern	90 degree diamond   hole	60 degree diamond   hole
Material	SS304, 316, 316L, etc
Cable diameter	1 ~ 4 mm
Cable   structure	7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3   mm, 4 mm)
Diamond   size	20 ~ 200 mm
Mesh   Orientation	Horizontal , Vertical
Feature	Quality material, High   flexibility, Anti-corrosion,Longevity, Cost effectiveness, Easy
