BRC Fence & Roll Top Fence

BRC Fence & Roll Top Fence

BRC Fence & Roll Top Fence

Material: Low carbon steel wire

Wire: 3.0mm-7.0mm

Mesh: 50*200mm,50*100mm, etc.

Height: 1.2m-3m

Width: 2-3m

Post: 60*60mm,80*80mm,60mmOD, etc.

Accessories: post caps, clips, nuts and bolts.

Surface treatment: Hot dipped galvanized, PVC coated, Powder coated

Packaging: pallets

Certificates: ISO9001, BV,SGS


TECHNICAL INFORMATION

  • Product description
  • Specifications
  • Technology
  • Picture
  • Download

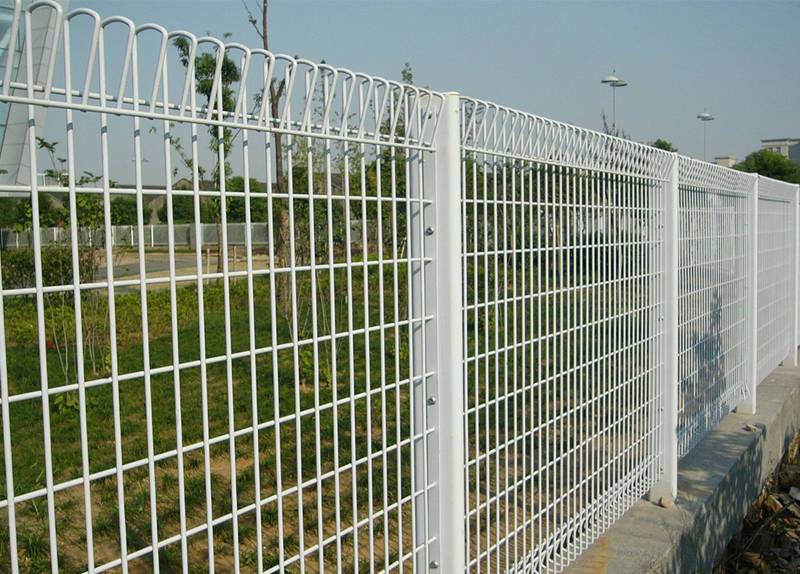

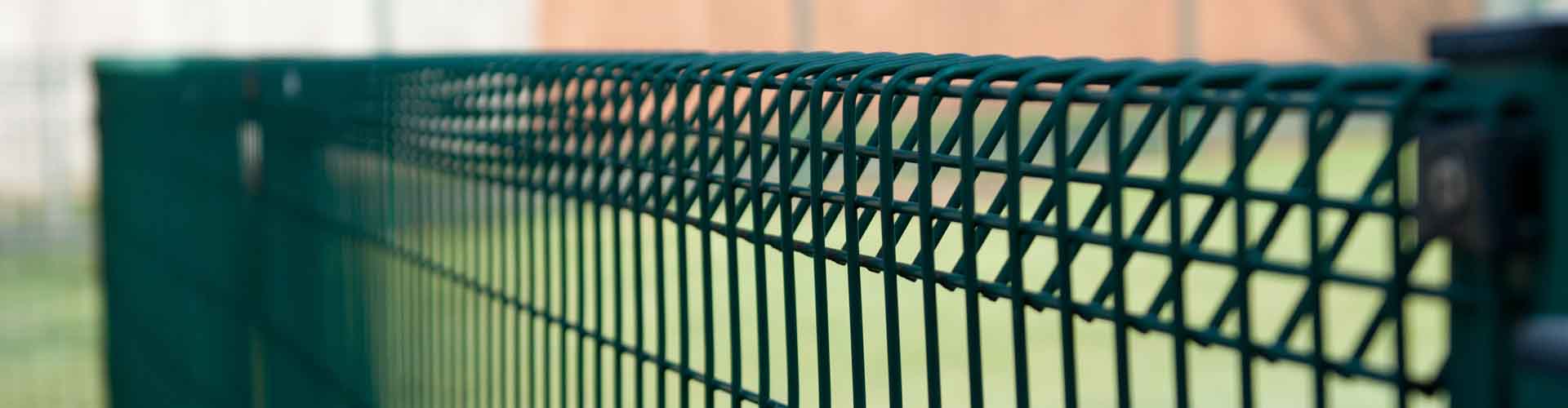

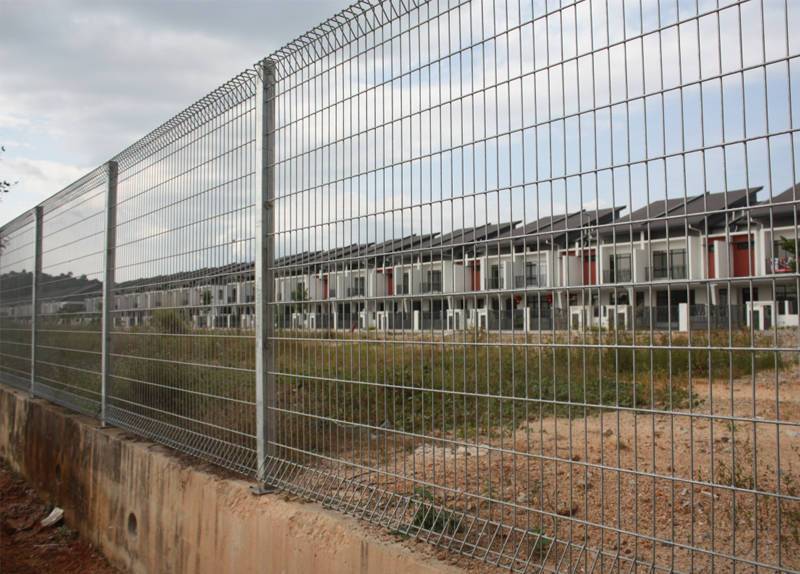

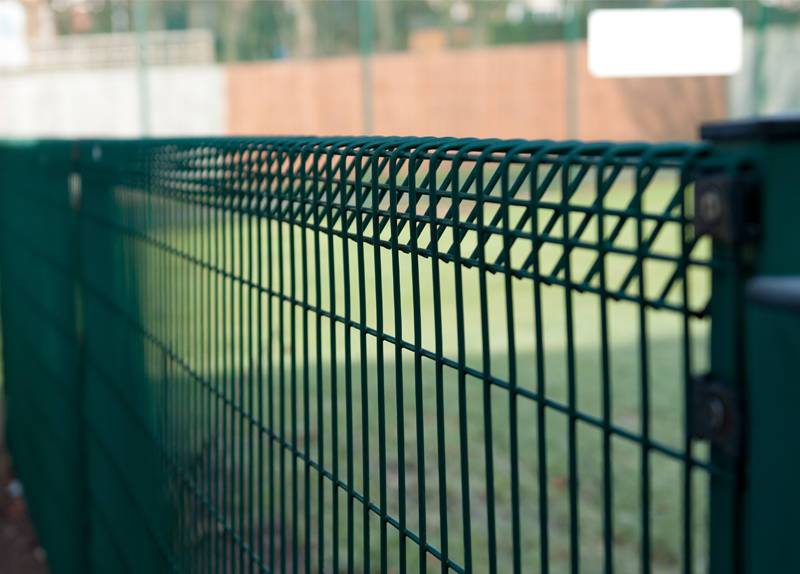

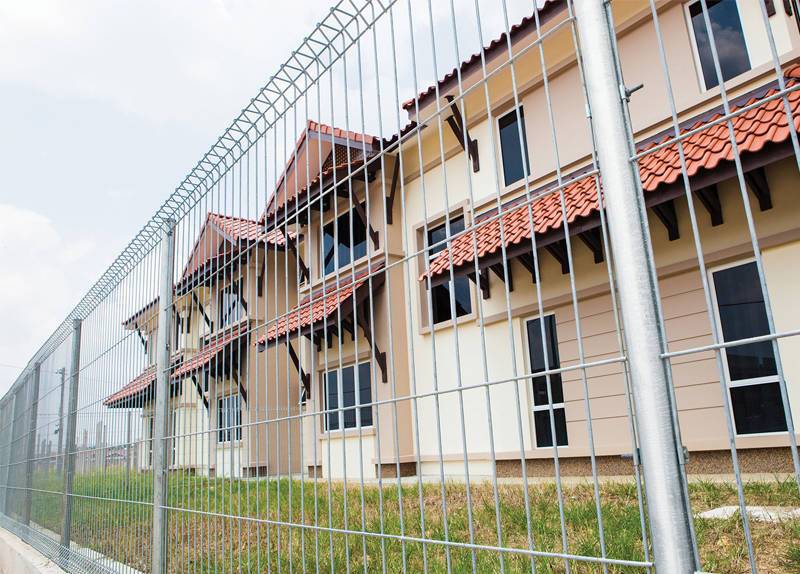

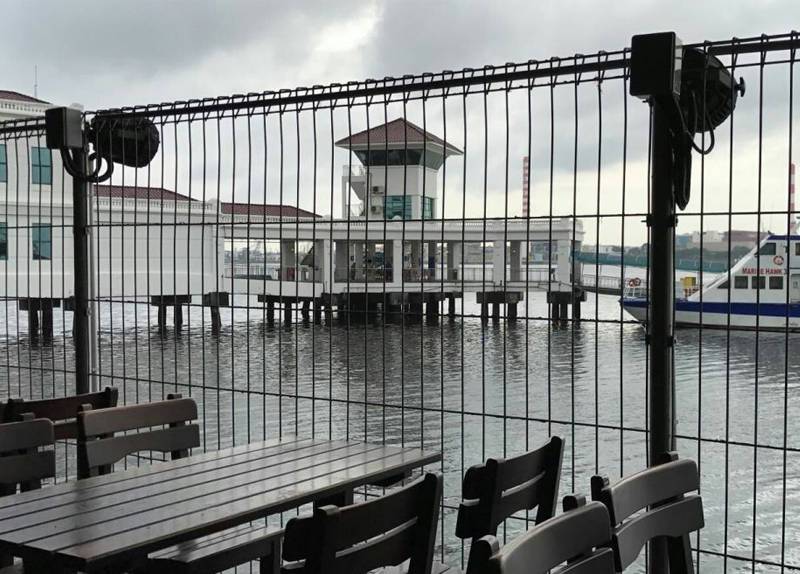

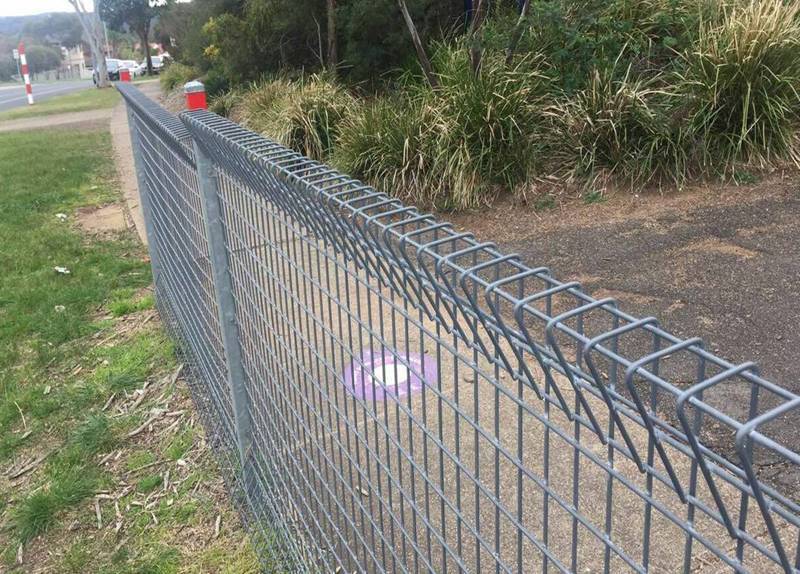

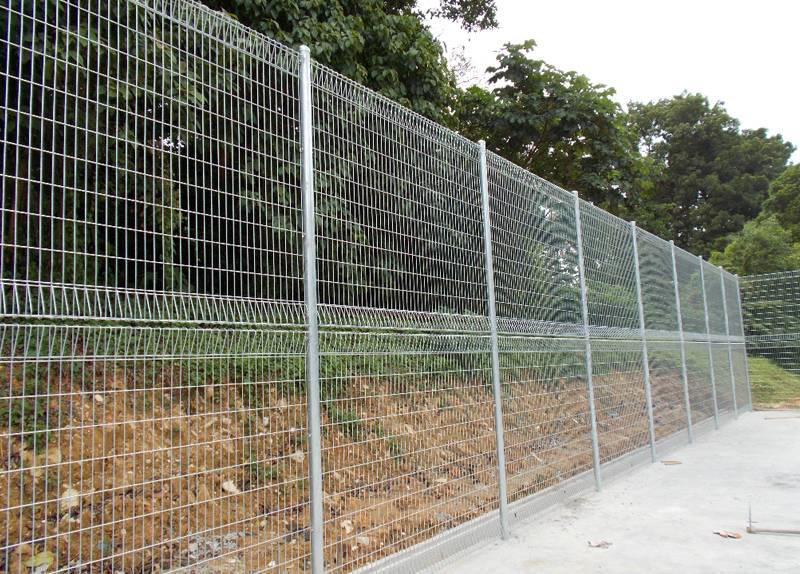

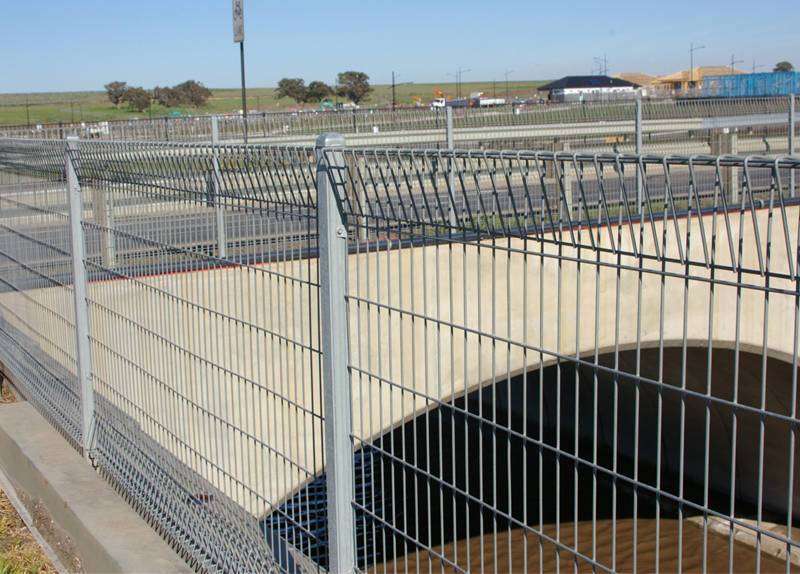

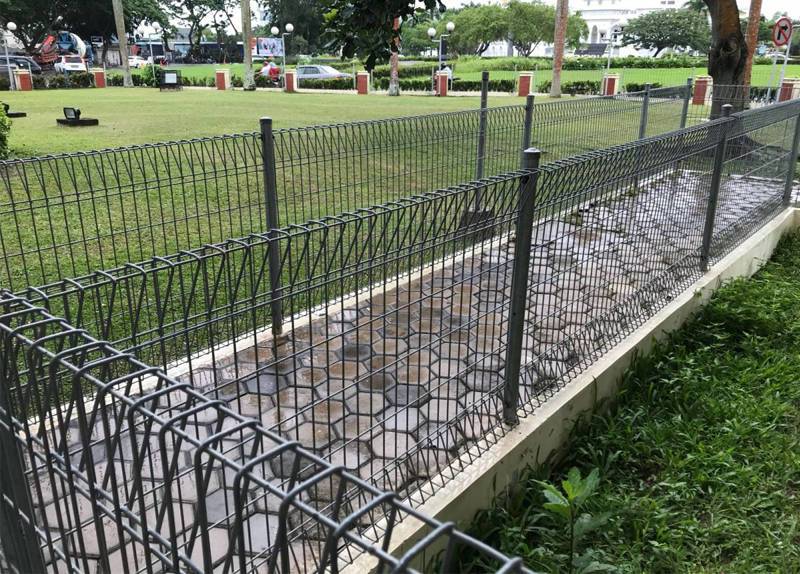

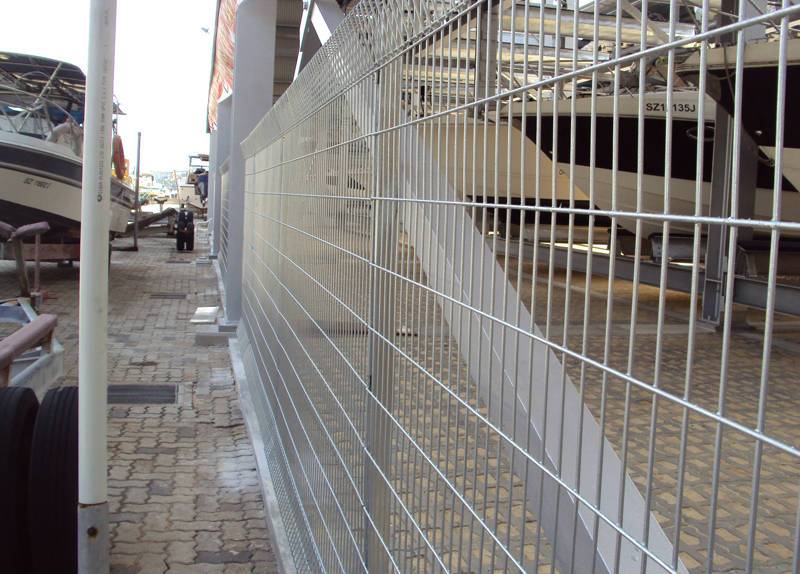

Roll top fence has a unique and user-friendly closed and rolled beam section at the top and bottom edge of each panel with no sharp or raw edges, usually made from heavy 5 mm wires, which results in maximum rigidity and better safety. It is suitable where safety is a consideration, such as schools, sports, parks and playgrounds, and company premises.



Roll Top fence is also called BRC fence,the unique design ensures there are no protruding sharp edges. The panel is extremely rigid and with good see through visibility. This system is ideal where safety is paramount, creating an ideal for Parks and Recreational fencing, Playground fencing and School fencing. This roll top fence / BRC is very popular in Australia, Southeast Asia,Euro Market,etc

        BRC Fence                            BRC Fence


Welded Wire Mesh Fence Panels

The roll top fence panels are made from welded mesh using heavy-duty wire to achieve high strength and rigidity. The heights are available on request, uaually 1.2m to 2.4m, mesh sizes are 200 x 50mm , and 100mm x 50mm for the beam sections. The heavy wires guarantee strength and rigidity. Different sizes can be made according to customer detailed requirements.



Post

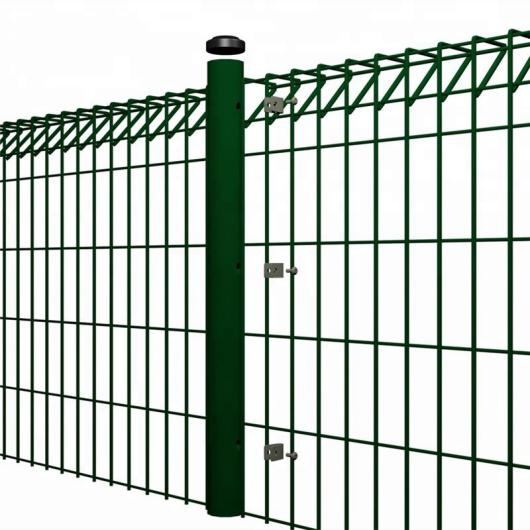

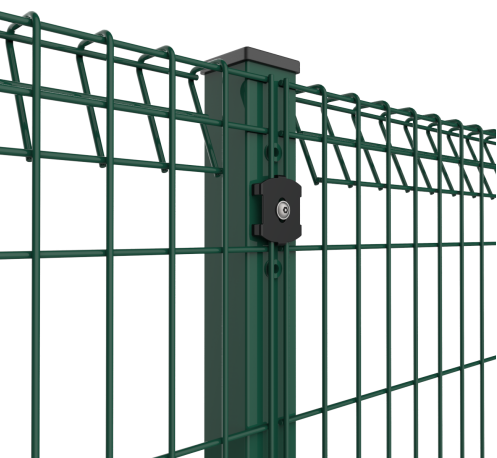

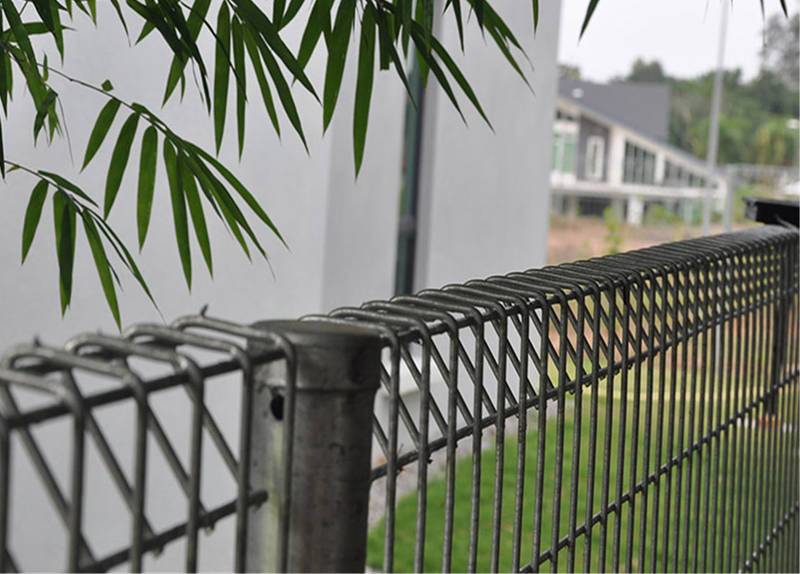

The posts for BRC fence are manufactured from hot dip galvanized 60 x 60mm or 60×80mm( others are available) square tube and 60mmOD round tube and are available from stock to suit fence heights of 1.2m or 2.4m. Longer posts for higher fences can be supplied. Panels are secured to the posts with steel clips and 6.0mm galvanized security fixings screwed into threaded inserts in the posts. All posts are supplied with protective plastic end caps.


Installation manner

1.The post popular buried under the ground 600mm-800mm and pouring concrete when installation them.

2. Welded flange base under the post ,and use setscrews to install on the hard ground.
